1:60 Modular ABS Mecha Model Kit Manufacturing Case
This case covers the engineering and manufacturing of the 1:60 V-Link modular mecha model-kit system, including 10 mecha bodies and a matching pilot figure. ABS and PVC are used across different parts according to structural and functional needs. Standardized pins, sockets and ball joints support interchangeability across compatible models, while molded-color runners reduce painting and support repeatable self-assembly.
Manufacturing Facts
1:60 Modular Mecha Model Kit System
ABS + PVC, used across different parts and functions
Matt finish
8–32 cm
1,000
15 Days
45 Days
A RIHIO product, co-developed and manufactured with Toyyie.
Paper box + bagged runners + instruction booklet
Collectible Model Kit
Finished Sample Review
The pre-production review covered all 10 mecha bodies, the matching 1:60 pilot figure, molded-color parts, material fit and universal connection points. Checks focused on joint fit and friction, standing stability, cross-model part interchangeability, pad-printed details and visual consistency before production approval.
Production Readiness
Why Choose Us?
Toyyie’s expertise turns your ideas from something you see in your mind’s eye into something you can hold in your hands. There’s always a gap between vision and actual production—and that’s where we step in. Drawing on our manufacturing experience, we tell you honestly what’s achievable and what isn’t. We guide you in selecting materials that deliver flawless results, and we help you strike the right balance between cost-effectiveness and faithful product reproduction.

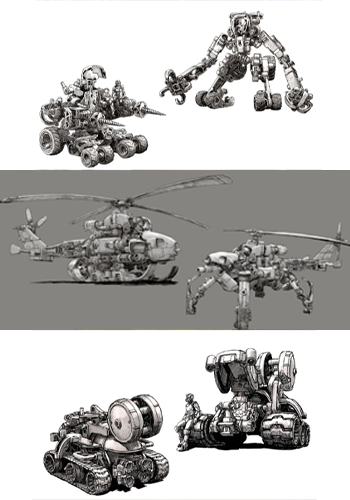

Platform Development

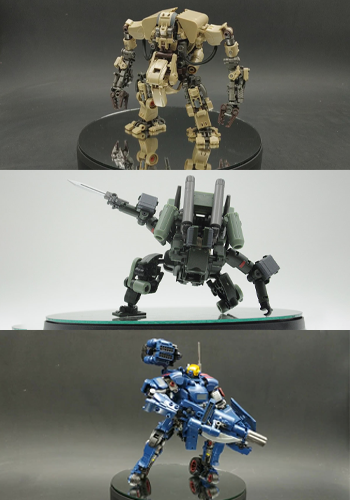

Assembled Prototype Review
Universal Connection & Part Fit Review
Cross-Model Modular Builds
Related World-System Character Figures
Factory Capability Behind This Case
Mass-producing the V-Link platform required precision tooling for mixed ABS and PVC parts, connection-tolerance control across 10 mecha bodies, molded-color runner management, pad printing, model-by-model part sorting and instruction-based packaging.
Precision Molding & Joint Tolerance Control
Precision molds were developed for the ABS and PVC parts used across the 10 mecha bodies. Peg, socket and ball-joint dimensions were controlled so compatible parts could assemble smoothly and interchange across the V-Link system.
Molded-Color Injection & Pad Printing

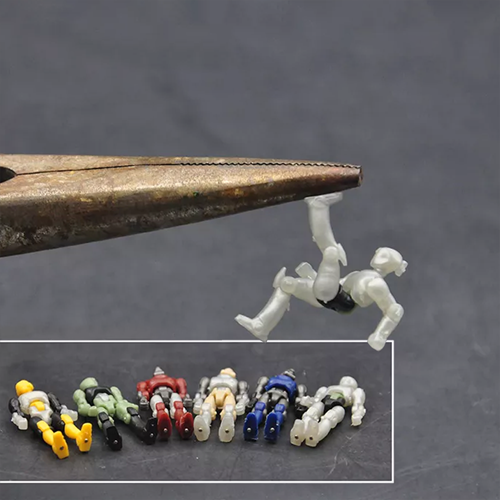

Molded-color injection was used to separate colors at the part level, while sub-millimeter pad printing was applied to 1:60 pilot face details and mecha warning markings.
Universal Connection & Interchangeability Control
Standardized pins, sockets and ball joints were checked across compatible models for fit, joint friction and part interchangeability, with attention to excessive looseness or interference during assembly.
Mixed-Material Part Planning
ABS and PVC were assigned by part and function within the same mecha body rather than by SKU. Material placement was reviewed together with joint fit, surface requirements and assembly behavior.

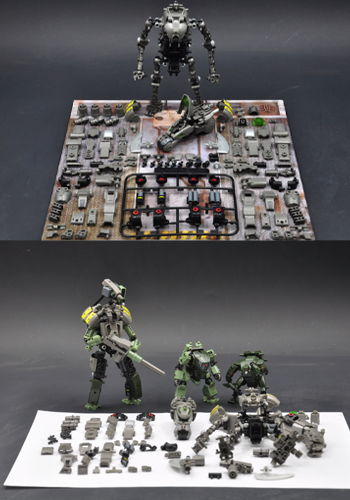

Runner Sorting, Instructions & Carton Drop Testing
Runners and loose parts were sorted and bagged by model, with an instruction booklet included for customer assembly. The retail paper box is not a window box, and the master carton was subjected to drop testing before shipment.
